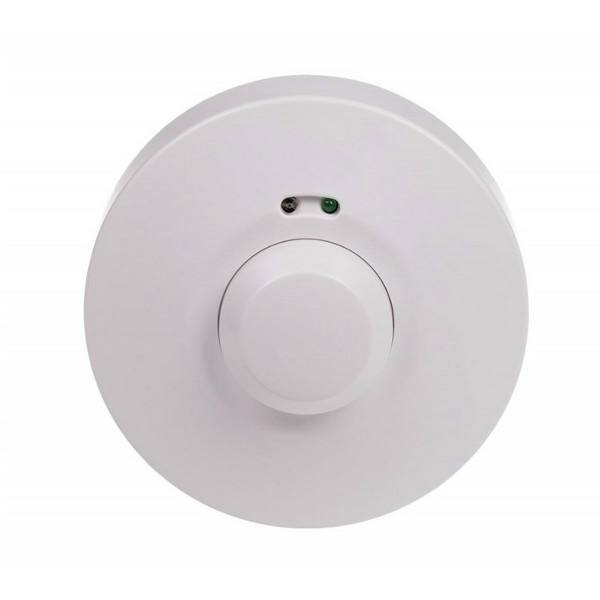

Microwave motion detector DRM-02
Power supply voltage | 230 V AC |
Maximum AC-1 load current | 5 A |
Operating threshold - adjustable | 2÷2000 Lx |
Delay of operation | less than 1 s |
Frequency of microwave radiation | 5,8 GHz |
Maximum radiation power | 10 mW |
Radiation detection - adjustable (for a height equal to 2.5 m) | 1÷10 m |
The receiver activation time - adjustable | 5 s ÷ 12 min. |
Horizontal detection field | 360° |
Type of detection | microwave |
Terminal | pluggable terminal blocks 1,0 mm² |
Tightening torque | 0,25 Nm |
Power consumption | 0,9 W |
Working temperature | -25 ÷ 50 °C |
Dimensions | Ø103 h: 44mm |
Assembly | on wall |
Ingress Protection Marking | IP40 |
