3-phase energy consumption monitor wi-fi, up to 40/5 A
enlarge picture
| Power supply voltage | 3× 230/400 V AC (-25%÷15%) |
| Frequency | 50÷60 Hz |

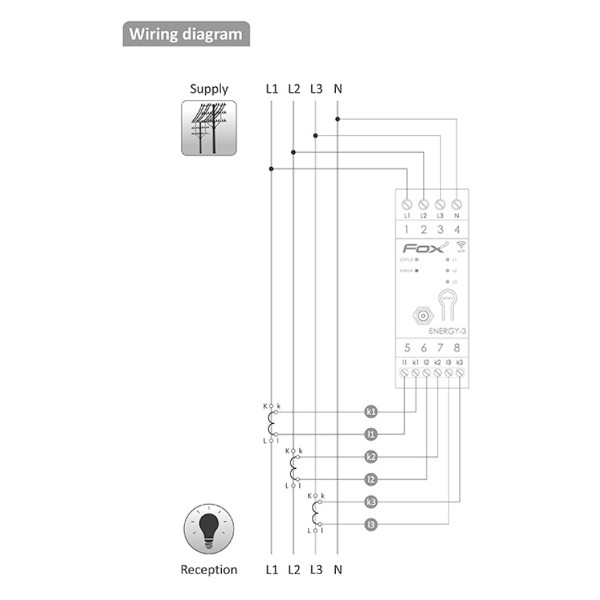

| Installation | 3-phase, 4-wire |
| Accuracy - meter | 1% |
| Accuracy - measuring transformers | 0,5% |
| Transformer parameters - primary current | 40 A |
| Transformer parameters - secondary current | 30 mA |

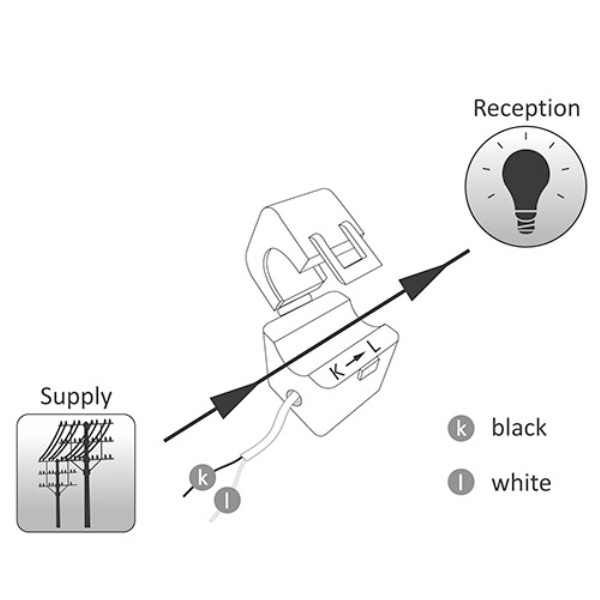

| Transformer parameters - cable diameter | ≤10 mm |
| Meter constant | 1000 imp/kWh |
| Humidity (non-condensing) | ≤ 90% |
| Radio frequency | 2,4 GHz |
| Transmission | WI-FI |
| Radio power (IEEE 802.11n) | ≤ 20 dBm |
| Receiver sensitivity | -98 dBm |
| Terminal | 2.5 mm² screw terminals (cord); 4.0 mm² screw terminals (wire) |
| Tightening torque | 0,5 Nm |
| Power consumption | ≤ 2 W |
| Working temperature | -20÷50°C |
| Dimensions | 2 modules (35 mm) |
| Assembly | on rail 35 mm |
| Ingress Protection Marking | IP20 |
